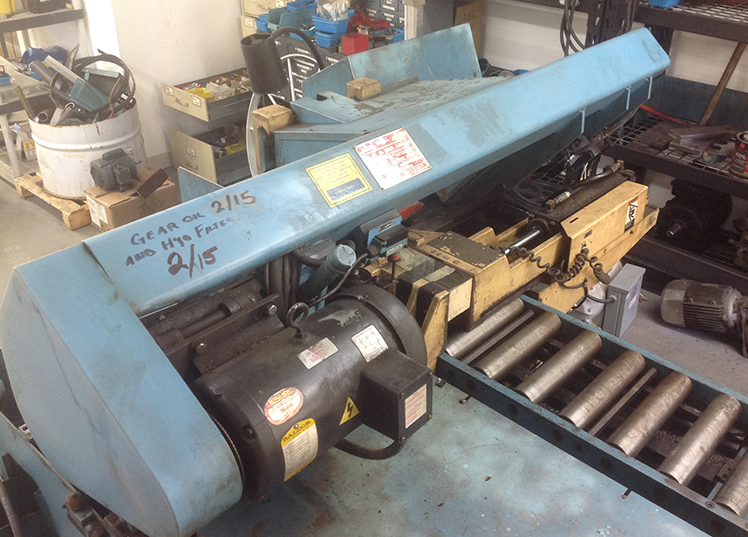

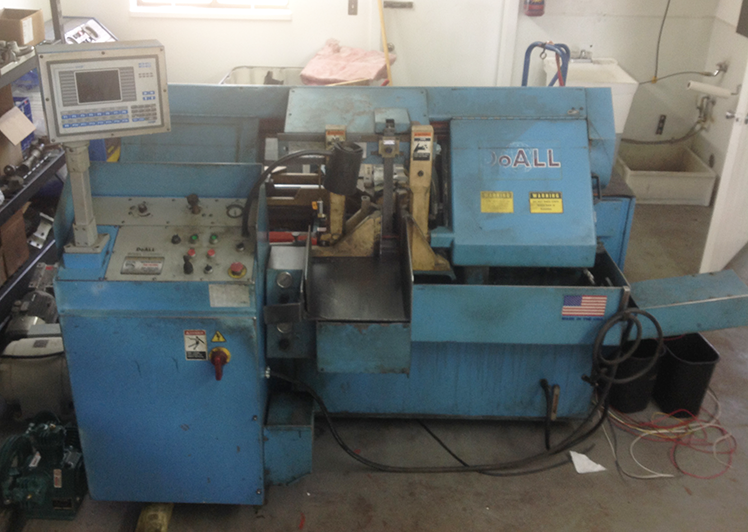

DoAll C-3300 NC Programmable Horizontal Band Saw w UniOP Controls & Saw
Manufacturer: DoAll
Model#: C-3300NC
New in: 1998
Specification:
Round Work Capacity: 13”
Square Work Capacity: 13”x16”
Table Height: 37”
Max Blade Size: 1.25”x162”
Blade Wheel Diameter: 18”
Blade Speeds: Programmable 50 -500 FPM
Stock Feed Shuttle Travel:
Programmable NC Controlled 24" Stroke
Number of Shuttle Indexes: Multiple
Drive Motor: 5HP
Equipped With:

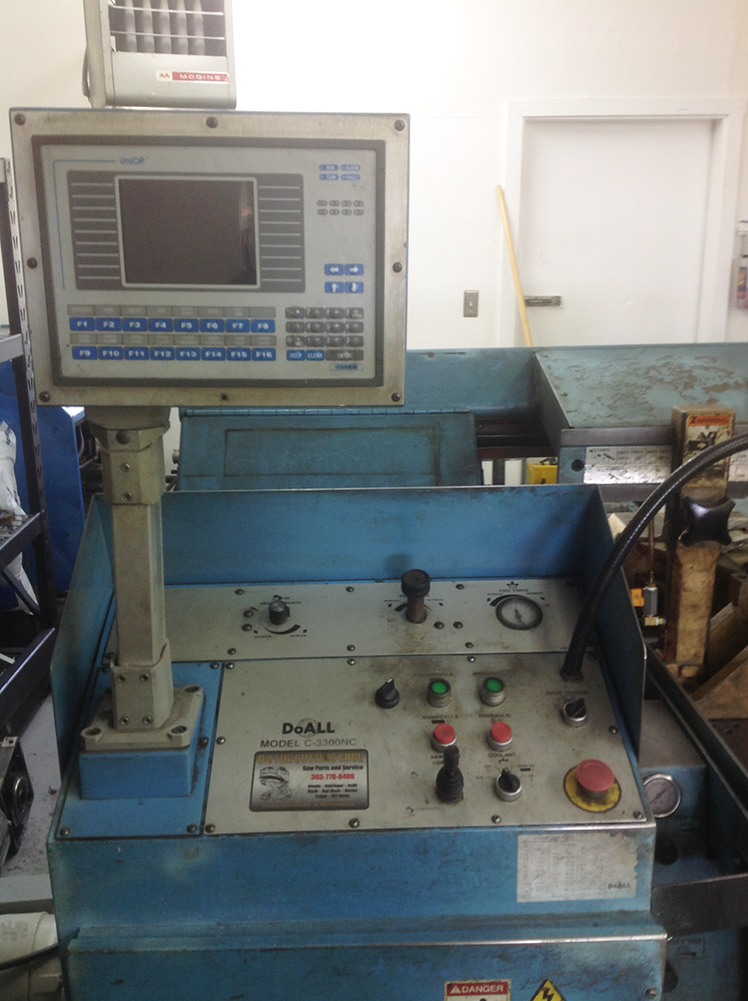

UniOp LCD Programmable Controls, Variable Feed Force,
Variable head Speed with T-BarHeight Switch Control,
Split Front Hydraulic Vise, 24" Stroke Programmable Stock Shuttle Vise,
18" Long Discharge Table,Hydraulic Band Tension and Controls, Powered Blade Brush, 12.5"
Wide Infeed Rolls, 1.25" x 181" Blade Size, Programmable Band Speeds, Chip Conveyor,
Coolant System, Creep Speed, 5 HP Blade Drive Motor, Instruction manual.
Wired: 440V 3 Phase
Approximate Machine Dimensions: 98"L x 86"W x 66"H
Approximate Weight: 4000 lbs.
$13,000.00
